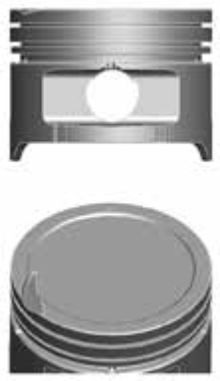

HYUNDAI

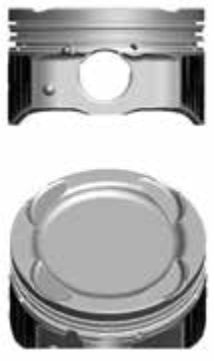

Q71
HYUNDAI
MOTOR BİLGİSİ

PISTON

TYPE

PIN

RING

PROTON NO

G4LA

4 Sil. Benzinli 1248 cc 57 KW 78 PS 10,5:1

i10 1.2 16V, i20 1.2 16V

2008 - ....

24.700
3.000
2.820
2.670
43.900
A

B-

B

BQ

C1

C2

D

E

Q18x48
03.278100.00
03.278100.04
1.000 CR ST
1.200 P GOE
2.000 CR ST

01.278100.00
01.278100.04

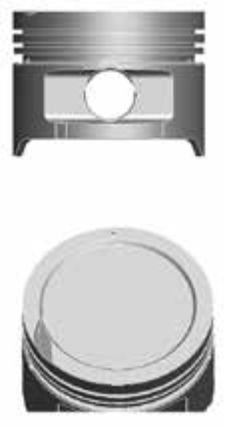

Q71,5
HYUNDAI
MOTOR BİLGİSİ

PISTON

TYPE

PIN

RING

PROTON NO

G4EH

4 Sil. Benzinli 1300 cc
Accent 1.3

1995 - 1998

31.300
1.100
59.000
2.000
54.400
A

B-

B

BQ

C1

C2

D

E

Q18x47,5
03.278101.00
03.278101.04
1.500 CRP KV1
1.500 P STD
3.000 CRP STD

01.278101.00
01.278101.04
Q71,5
HYUNDAI
MOTOR BİLGİSİ

PISTON

TYPE

PIN

RING

PROTON NO

G4K

4 Sil. Benzinli 1300 cc 75 Ps
Accent 1,3 Milenyum

2000 - ....

30.800
0.700
57.900
2.200
53.900
A

B-

B

BQ

C1

C2

D

E

Q18x47,5
03.278102.00
03.278102.04
1.500 CRP KV1
1.500 P STD
3.000 CR ST

01.278102.00
01.278102.04

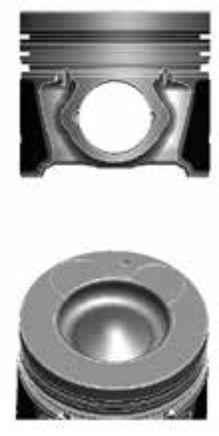

Q75
HYUNDAI
MOTOR BİLGİSİ

PISTON

TYPE

PIN

RING

PROTON NO

D4FA C. Rail

4 Sil. Dizel 1493 cc 81 Kw (110 Ps) 17,8:1
Accent Era 1.5 CRDI-VGT 16v

2005 - ....

41.900
12.200
43.400
0.500
65.700
A

B-

B

BQ

C1

C2

D

E

CS YSG YO
Q28x62
03.278103.00
03.278103.04
1.750 CK ST
1.750 CRP KV1
3.000 NT ST

01.278103.00
01.278103.04

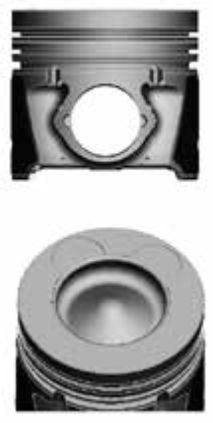

Q75
HYUNDAI
MOTOR BİLGİSİ

PISTON

TYPE

PIN

RING

PROTON NO

D4FC

4 Sil. Dizel 1396cc 90

ACCENT 1.4 CRDi,
i20 1.4 CRDi,
iX20 1.4 CRDi

2011 - ....

44.700
11.800
43.400
0.500
68.500
A

B-

B

BQ

C1

C2

D

E

CS TSA YSG YO
Q28x62
03.278104.00
03.278104.04
1.750 NT ST
1.750 CR KV1
3.000 NT ST

01.278104.00
01.278104.04

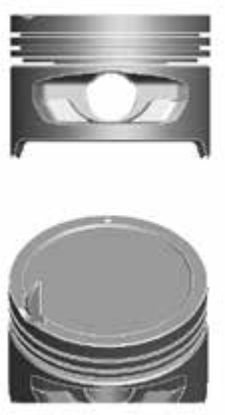

Q75,5
HYUNDAI
MOTOR BİLGİSİ

PISTON

TYPE

PIN

RING

PROTON NO

G4EE

4 Sil. Benzinli 1399 cc 97 PS 10:1

1.4 DOCH
Accent Era 1.4 16v

2005 - ....

28.750
2.200
2.950
47.900
A

B-

B

BQ

C1

C2

D

E

Q18x47,9
03.278105.00
03.278105.04
1.200 CR ST
1.200 P F14
2.000 ST

01.278105.00
01.278105.04

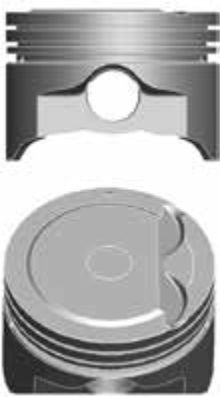

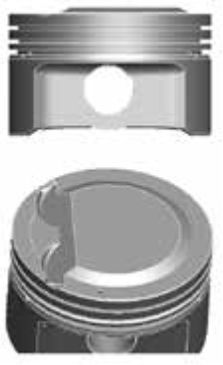

Q75,5
HYUNDAI
MOTOR BİLGİSİ

PISTON

TYPE

PIN

RING

PROTON NO

G4EK

4 Sil. Benzinli 1495 cc
Accent 1,5

1990 - 2000

31.370
0.700
64.300
2.200
54.400
A

B-

B

BQ

C1

C2

D

E

Q18x47,5
03.278106.00
03.278106.04
1.500 CRP KV1
1.500 P GOE
3.000 CR ST

01.278106.00
01.278106.04

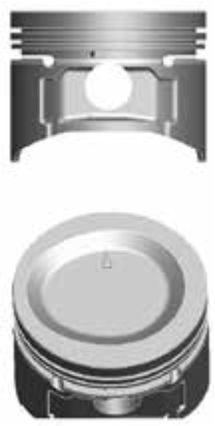

Q75,5
HYUNDAI
MOTOR BİLGİSİ

PISTON

TYPE

PIN

RING

PROTON NO

G4EC-G, G4EB

4 Sil. Benzinli 1500 cc
Accent 1,5 Milenyum

2000 - ....

31.070
0.950
3.000
54.400
A

B-

B

BQ

C1

C2

D

E

Q18x47,5
03.278107.00
03.278107.04
1.200
1.500
3.000

01.278107.00
01.278107.04
Q75,5
HYUNDAI
MOTOR BİLGİSİ

PISTON

TYPE

PIN

RING

PROTON NO

G15B

4 Sil. Benzinli 1468 cc 56 Kw (76 Ps) 8,5:1
Excet 1.5

1990 - 1994

29.400
3.700
58.800
A

B-

B

BQ

C1

C2

D

E

Q18x60
03.278108.00
03.278108.04
1.500 CRP KV1
1.500 P STD
4.000 P STD

01.278108.00
01.278108.04

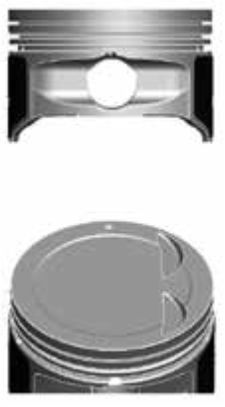

Q76,5
HYUNDAI
MOTOR BİLGİSİ

PISTON

TYPE

PIN

RING

PROTON NO

G4ED

4 Sil. Benzinli 1588 cc
16 Valve
Accent 1,6i 16 v

2004 - ....

28.140
0.400
60.400
3.000
50.140
A

B-

B

BQ

C1

C2

D

E

Q18x47,5
03.278109.00
03.278109.04
1.200 CR ST
1.200 P GOE
2.000 CR ST

01.278109.00
01.278109.04
Q77
HYUNDAI
MOTOR BİLGİSİ

PISTON

TYPE

PIN

RING

PROTON NO

G4FD

4 Sil. Benzinli 1591 cc 95.6 KW 140 PS
1.6 16V

ACCENT, ELENTRA, i30, i20, iX 35

2010 - ....

26.900
2.900
2.940
2.700
45.000
A

B-

B

BQ

C1

C2

D

E

TSA
Q18x52,3
03.278110.00
03.278110.04
1.200 PVD ST
1.200 P GOE
2.000 NT ST

01.278110.00
01.278110.04

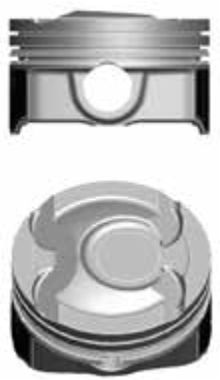

Q77
HYUNDAI
MOTOR BİLGİSİ

PISTON

TYPE

PIN

RING

PROTON NO

G4FA

4 Sil. Benzinli 1396 cc 81 KW 109 PS

1.4L 16V
ACCENT, i30, i20

2009 - ....

26.900
1.400
3.100
43.900
A

B-

B

BQ

C1

C2

D

E

Q18x52,3
03.278111.00
03.278111.04
1.200 PVD ST
1.200 P GOE
2.000 PVD ST

01.278111.00
01.278111.04

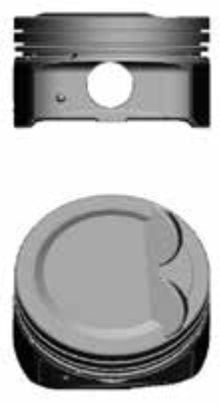

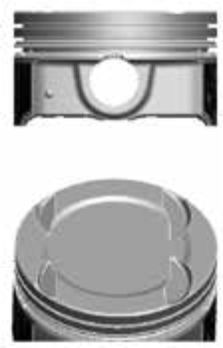

Q77
HYUNDAI
MOTOR BİLGİSİ

PISTON

TYPE

PIN

RING

PROTON NO

G4FG

4 Sil. Benzinli 1591 cc 88 KW 120 PS

1.6 16V
ELENTRA, i30

2011 - ....

26.900
0.850
2.000
3.000
43.900
A

B-

B

BQ

C1

C2

D

E

TSA
Q18x52,3
03.278112.00
03.278112.04
1.200 PVD ST
1.200 P GOE
2.000 PVD ST

01.278112.00
01.278112.04

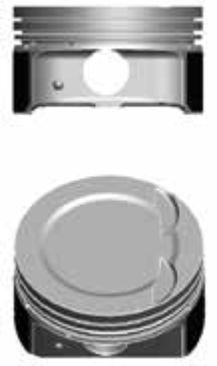

Q77
HYUNDAI
MOTOR BİLGİSİ

PISTON

TYPE

PIN

RING

PROTON NO

G4FC

4 Sil. Benzinli 1591 cc 96 Kw 230 PS 10,5

i30 1.6 16V, i20 1.6 16V

2010 - ....

26.900
0.950
2.800
43.900
A

B-

B

BQ

C1

C2

D

E

Q18x52,3
03.278113.00
03.278113.04
1.200 PVD ST
1.200 P GOE
2.000 PVD ST

01.278113.00
01.278113.04

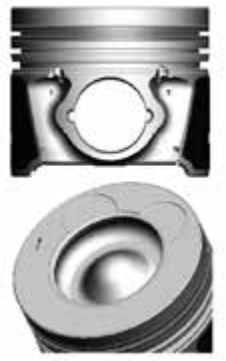

Q77,2
HYUNDAI
MOTOR BİLGİSİ

PISTON

TYPE

PIN

RING

PROTON NO

D4FB

4 Sil. Dizel 1.6 CRDi 1582cc 84 Kw
(115 Ps) 17:3

i30

2007 - ....

41.950
12.700
44.000
0.500
65.700
A

B-

B

BQ

C1

C2

D

E

YSG CS YO
Q28x62
03.278114.00
03.278114.04
2.500
2.000
4.000

01.278114.00
01.278114.04

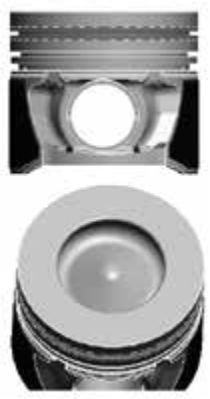

Q83
HYUNDAI
MOTOR BİLGİSİ

PISTON

TYPE

PIN

RING

PROTON NO

D3EA

3 Sil. Dizel 1493 cc 60 Kw (82 Ps) 17,7:1
Accent 1.5 CRDI, Getz 1.5 CRDI

2002 - ....

46.300
13.900
46.950
72.300
A

B-

B

BQ

C1

C2

D

E

CS YO BP
Q28x65,5
03.278115.00
03.278115.04
1.950 CKP ST
2.000 CRPGOE
3.000 NT ST

01.278115.00
01.278115.04

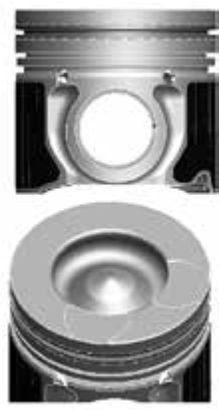

Q91
HYUNDAI
MOTOR BİLGİSİ

PISTON

TYPE

PIN

RING

PROTON NO

D4BC

4 Sil. Dizel 2497 cc 125 Kw- 170 BG

STAREX 2.5 CRDI

....

54.250
15.000
52.000
0.340
83.700
A

B-

B

BQ

C1

C2

D

E

CS YSG YO BP
Q33x74
03.278116.00
03.278116.04
2.500 CKP KV4
2.000 CRPGOE13
3.000 NT ST

01.278116.00
01.278116.04

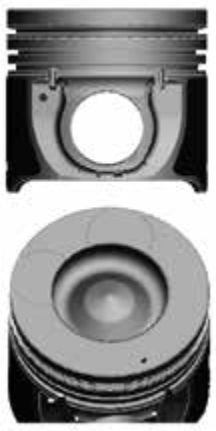

Q91
HYUNDAI
MOTOR BİLGİSİ

PISTON

TYPE

PIN

RING

PROTON NO

D4CB CRDI

4 Sil. Dizel 2497 cc 103 Kw (140 Ps) 19,3:1
Starex 2.5 CRDI

2002 - ....

54.250
15.000
52.000
0.300
83.750
A

B-

B

BQ

C1

C2

D

E

CS YSG YO
Q33x75
03.278117.00
03.278117.04
2.500 CKP KV4
2.000 CRPGOE
3.000 NT ST

01.278117.00
01.278117.04

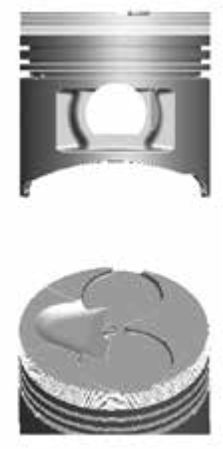

Q91,1
HYUNDAI
MOTOR BİLGİSİ

PISTON

TYPE

PIN

RING

PROTON NO

D4BF

4 Sil. Dizel 2500 cc
Starex 2.5 TC

1998 - ....

48.700
3.100
2.300
2.600
88.700
A

B-

B

BQ

C1

C2

D

E

CS SP
Q29x75
03.278118.00
03.278118.04
2.554 CRP KV1
2.054 CRP KV1
4.000 CRP GOE

01.278118.00
01.278118.04

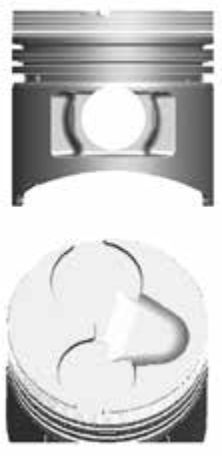

Q91,1
HYUNDAI
MOTOR BİLGİSİ

PISTON

TYPE

PIN

RING

PROTON NO

D4BB

4 Sil. Dizel 2477 cc
H 100 2.5 TD

1994 - ....

48.700
3.200
1.900
2.500
88.700
A

B-

B

BQ

C1

C2

D

E

SP
Q29x75
03.278119.00
03.278119.04
2.000 CRP KV1
2.000 CRP STD
3.000 CRP STD

01.278119.00
01.278119.04

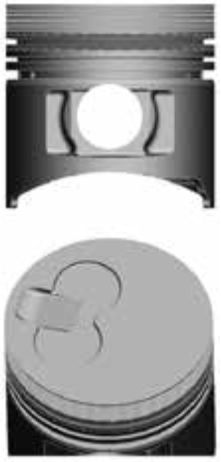

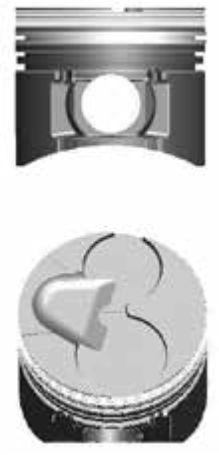

Q91,1
HYUNDAI
MOTOR BİLGİSİ

PISTON

TYPE

PIN

RING

PROTON NO

4 Sil. Dizel 2600 cc
H 100 Kamyonet Tek ve Çift Kabin

1996 - ....

46.250
3.070
2.000
2.300
76.150
A

B-

B

BQ

C1

C2

D

E

CS
Q29x75
03.278120.00
03.278120.04
2.000 CRP KV1
2.000 CRP STD
3.000 CRP STD

01.278120.00
01.278120.04
Q91,1
HYUNDAI
MOTOR BİLGİSİ

PISTON

TYPE

PIN

RING

PROTON NO

D4BH

4 Sil. Dizel 2476 cc 73-78 Kw (99-106 Ps)
21:1
Turbo, Intercooler
Starex 2500 TCI

2000 - 2002

48.700
1.300
88.700
A

B-

B

BQ

C1

C2

D

E

CS SP YSG YO
Q29x75
03.278121.00
03.278121.04
2.554 CRP KV1
2.054 CRP KV1
4.000 CRP GOE

01.278121.00
01.278121.04
1. ve 3. Silindir
01.278122.00
01.278122.04
2. ve 4. Silindir

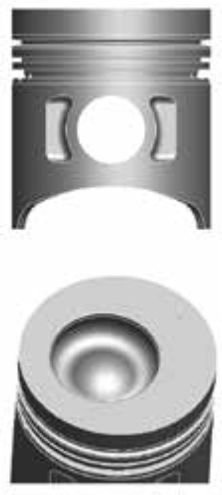

Q100
HYUNDAI
MOTOR BİLGİSİ

PISTON

TYPE

PIN

RING

PROTON NO

D4AE

4 Sil. Dizel 3298 cc
H350 TD, HD77 TD

1995 - ....

60.650
17.400
54.700
110.650
A

B-

B

BQ

C1

C2

D

E

CS
Q34x84
03.278123.00
03.278123.04
3.000 CR KV1
2.000 CR KV1
4.000 CR GOE

01.278123.00
Q100
HYUNDAI
MOTOR BİLGİSİ

PISTON

TYPE

PIN

RING

PROTON NO

4 D 31-OA

4 Sil. Dizel 3298 cc 69 Kw (94 Ps) 17,5:1
H350

60.700
18.100
52.500
110.700
A

B-

B

BQ

C1

C2

D

E

CS SP
Q34x84
03.278124.00
03.278124.04
3.000 CRP KV1
2.000 P STD
5.000 CRP STD

01.278124.00

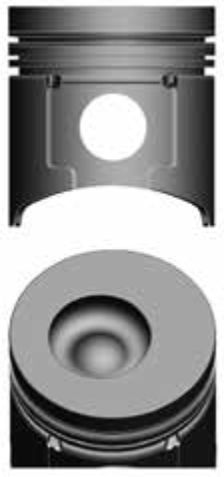

Q 104
HYUNDAI
MOTOR BİLGİSİ

PISTON

TYPE

PIN

RING

PROTON NO

D4AF

4Sil.Dizel 3568 cc

HD35,HD72

1999-2001

60.730
19.000
50.700
110.730
A

B-

B

BQ

C1

C2

D

E

CS SP
Q34x84
03.278125.00
03.278125.04
3.000 CRP KV1
2.000 CRPGOE
4.000 NT ST
Q104
HYUNDAI
MOTOR BİLGİSİ

PISTON

TYPE

PIN

RING

PROTON NO

4 D 34-1 ATA EUROII

4 Sil. Dizel 3908cc 96 KW - 130PS
HD65, HD 72, HD 82

2006 - ....

62.200
23.000
49.000
112.200
A

B-

B

BQ

C1

C2

D

E

CS SP YSG YO
Q36x88
03.278126.00
03.278126.04
3.000 CRP KV1
2.000 CRP IKA
4.000 CRP STD

01.278126.00
01.278126.04
